Loss cone paper: plots for 200k run

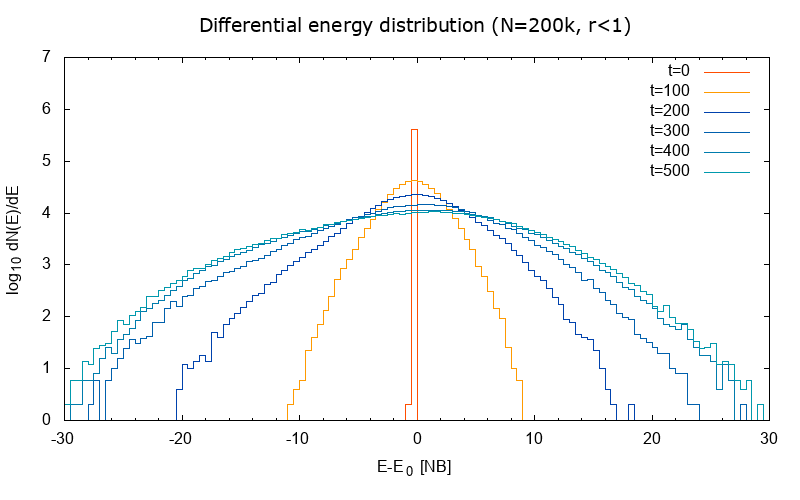

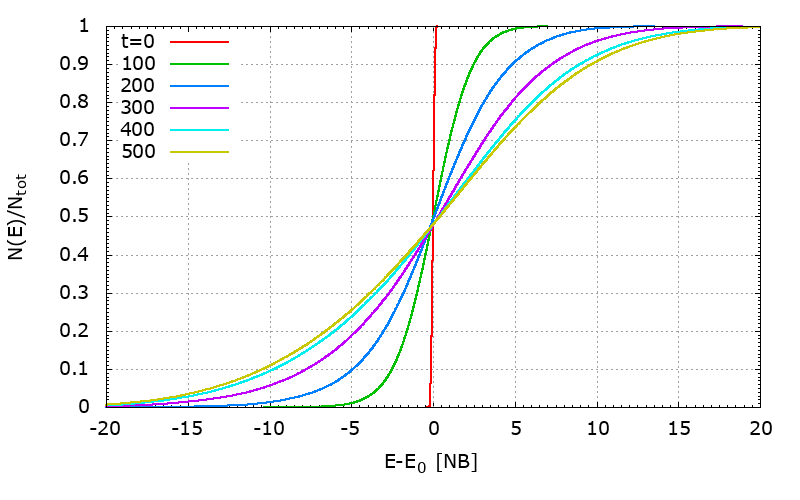

Energy diffusion

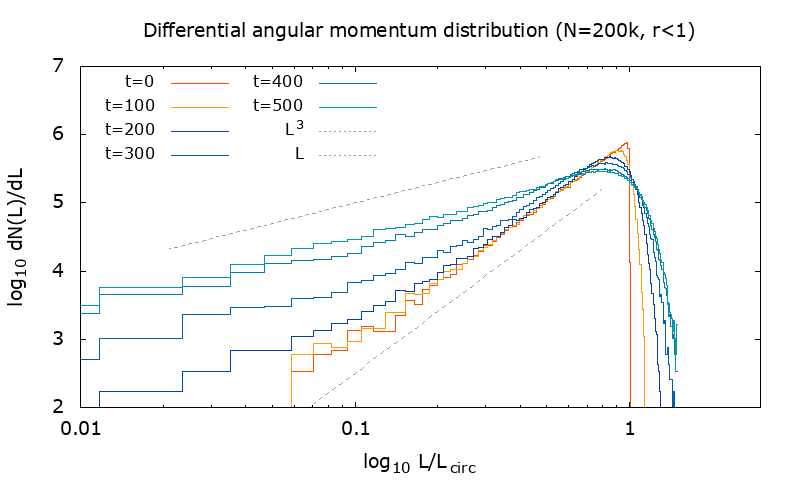

Differential angular momentum distribution:

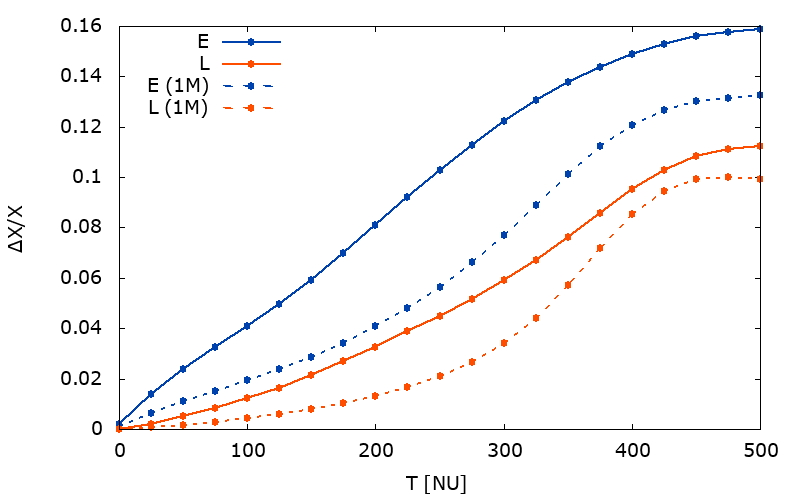

Spreads of the energy \(\Delta E/E\) and angular momentum \(\Delta L/L\) vs time:

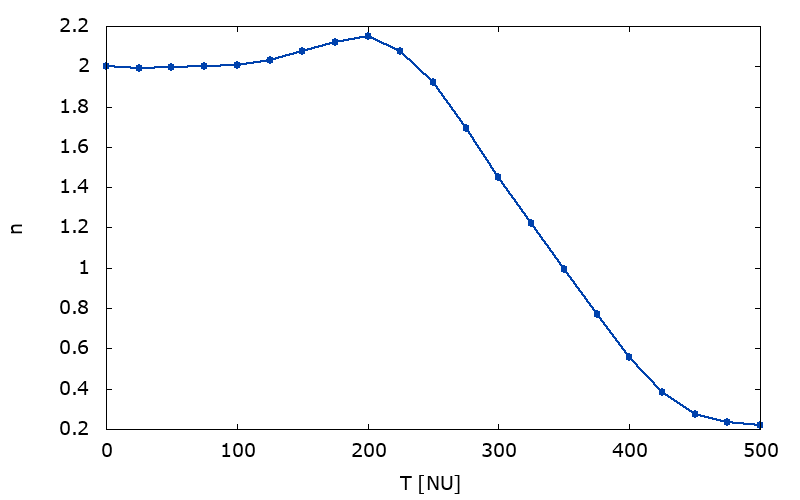

'Effective’ index \(n\) of the model measured by fitting to the angular momentum distribution for \(0\leq L/L_\textrm{circ} \leq \frac34 \):

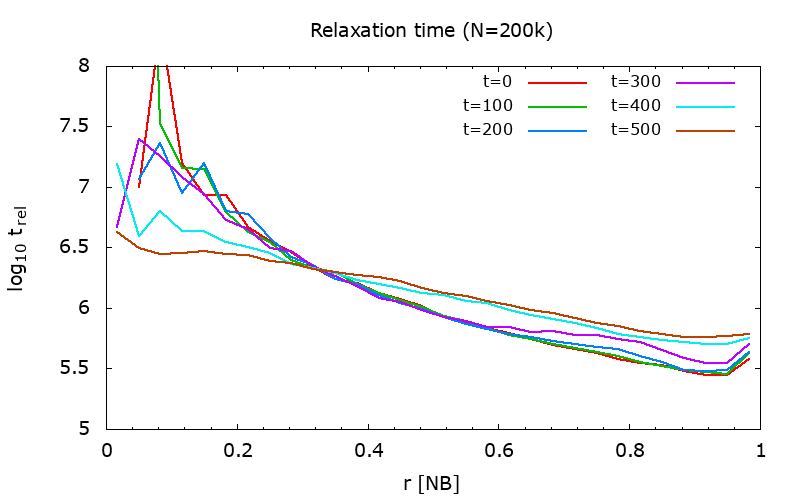

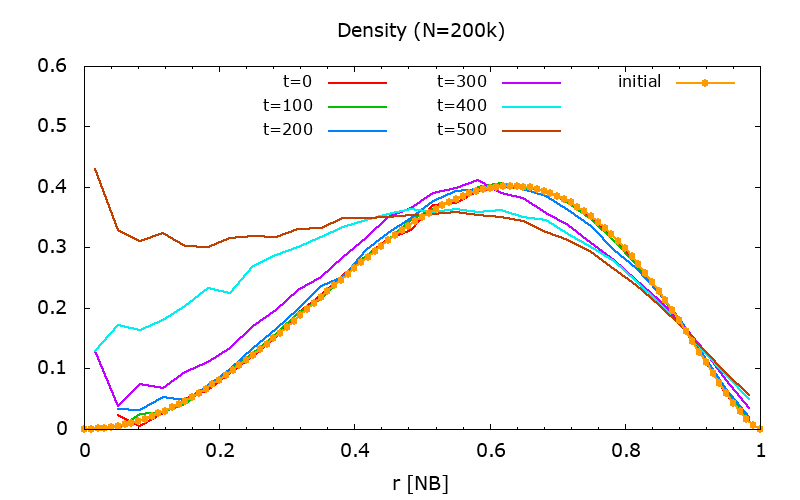

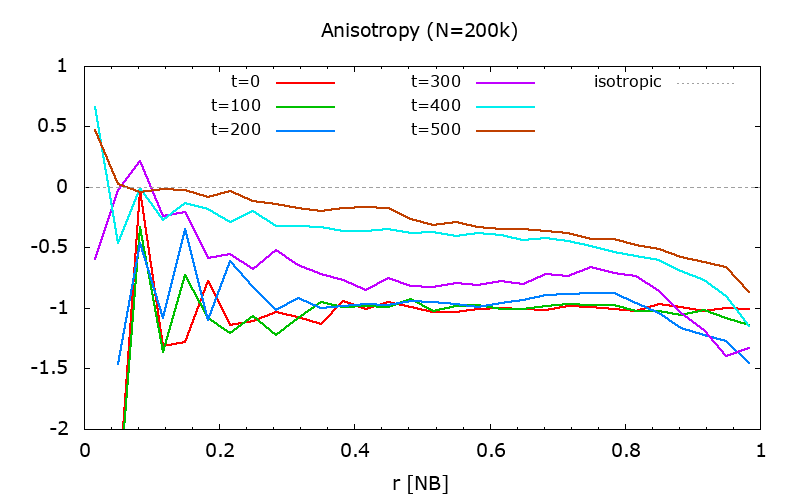

Density, local anisotropy, relaxation time
